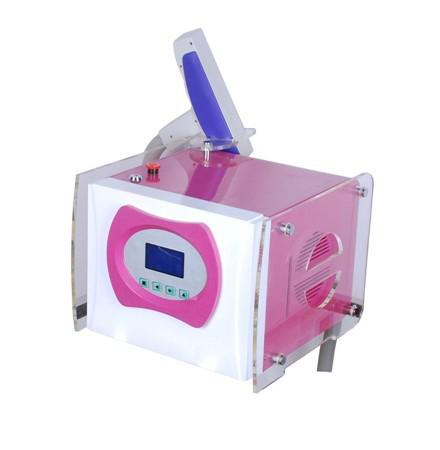

Q-switched Nd:yag laser tattoo removal machine  A8

The Q-Switched Nd: YAG Laser radiates the light of specific wavelengths in high peak energy pulse; and in ultra-short nanosecond (6ns) the light penetrates the tissue, is absorbed by the pigment and results in an instantaneous blast. The pigment particles are shattered into fragments; parts of them will be bounced out of the skin and the other parts will be spilt into tiny particles that can be engulfed by phagocytes and then eliminated by lymphatic system.

Usage:

1,Remove tattoo,soak lip, , lip line, age pigment, birthmark, etc

2.Dispel the coloring matter dermatosis and the mixed pigment,

3.Dispel the coloring matter aggradations,

4.Remove red, black, purple, palm, born etc pigment of line-eyebrow

Technical parameter:

l         Laser Type:             Q-Switched Nd: YAG

l         Wavelength:            1064nm and 532nm

l         Pulse Energy:           800mJ & 400mJ

l         Spot Diameter;          1-3mm

l         YAG Bar:              Diameter 5

l         Operational Interface:    6” dual color LCD

l         Cooling system:         Water cooling+ air cooling

l         Electrical Source:        AC220V±10%, 50Hz    AC110V±10%, 60Hz

l         Dimension (perpackaged): 36*35*27cm

l         Net weight:             16kg

Advantage:

·The water tank of our A8 is bigger than others, so our device can have a better effect of water ciuculation.

·The (diameter) of our laser YAG bar is 5 mm, others are just 3 or 4 mm.

·Our A8 can work for about 30 minutes, longer working time than others.

·You will find out that the capacitor we use is bigger than others, so our laser can make sure the power energy to reach 800mj & 400mj.

·.Offerrig competetive price and excellent quality as one of the biggest IPL Machine manufacturer in China.

·. The shell is made of the ABS environmental material and beautiful design

·. CE, and ISO9001 Certificate passed, products 1 year guarantee.

·. Free training both on our company and on line.
