How does PDT LED work?

The reaction of photo dynamic is driven by near-infrared, ultraviolet, or visible light. This new technology is systemic administration of photosensitize, which is excited by photons with chemical and biologic process. The Photo Dynamic Therapy (PDT) can treat a vast number of skin conditions successfully and has been proven to restore youth to aging skin.

Photo Dynamic Therapy is preferentially taken up by tissues of strong mitotic activity and pathological stroma. Photosensitize develops no spontaneous toxicity; and they must be excited by photons to produce cytotoxic free radicals, such as singlet oxygen and superoxide radicals. These radicals selectively destroy the neoplastic cells having strong mitotic activities.

APPLICATIONS:

Acne removal, skin rejuvenation, anti age, spider vein treatment, pigmentation removal etc.

TECHNICAL PARAMETERS:

•Type of light sources: LED gene biological wave light sources

•Wavelength:

Red color: 640±5 nm>8000mcd

Blue color: 460±5 nm>4000mcd

•Spot Size: 225*60(mm2)*8groups

•Temperature of lamp: ≤40°C

•Power supply: 110/220V, 50/60Hz

•Output power: 120 mw/cm2

•Working temperature: 5~40°C

•Dimension: 40cm×46cm×156cm

•Net weight: 38 kg

•No. of LED Lamps: 1680 Pcs

CHARACTERISTICS:

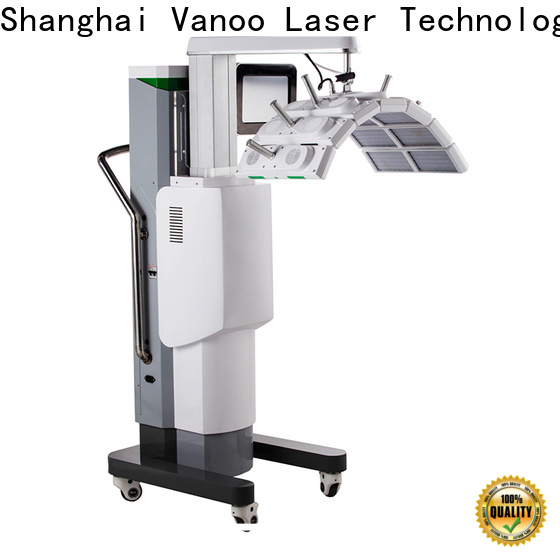

1. Treatment Panel can revolve 720°.

2. Portable design could be fold, easy to carry.                                                                                  3. Especial material of panel board with good cooling.                                                                             4. It can set different position by the adjustable arm; client can set down or lie down for treatment.

5. You can choose two, three or four different lights (red, blue, yellow or infrared lights) on the panel; just press the button at the back of panel to change the lights, easy to operate.

6. It has a timer system.
